The VE builds upon the already wide range of features the VM offers, with the additional functionality of being able to carry standing passengers, or multiple occupants, between floors.
Despite its wide array of features, the VE is designed to be compact, easy to install, and perfectly suited to the home.

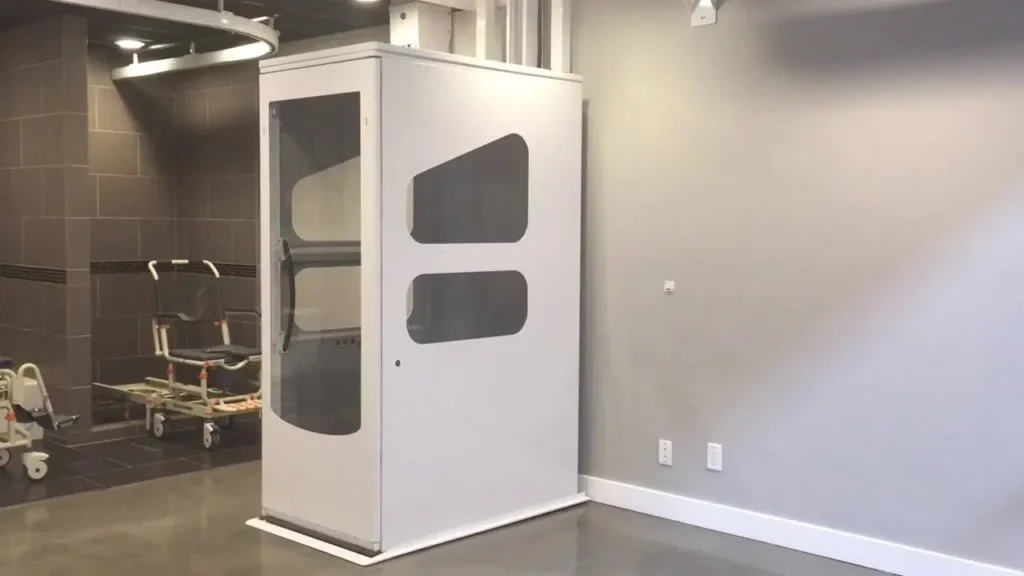

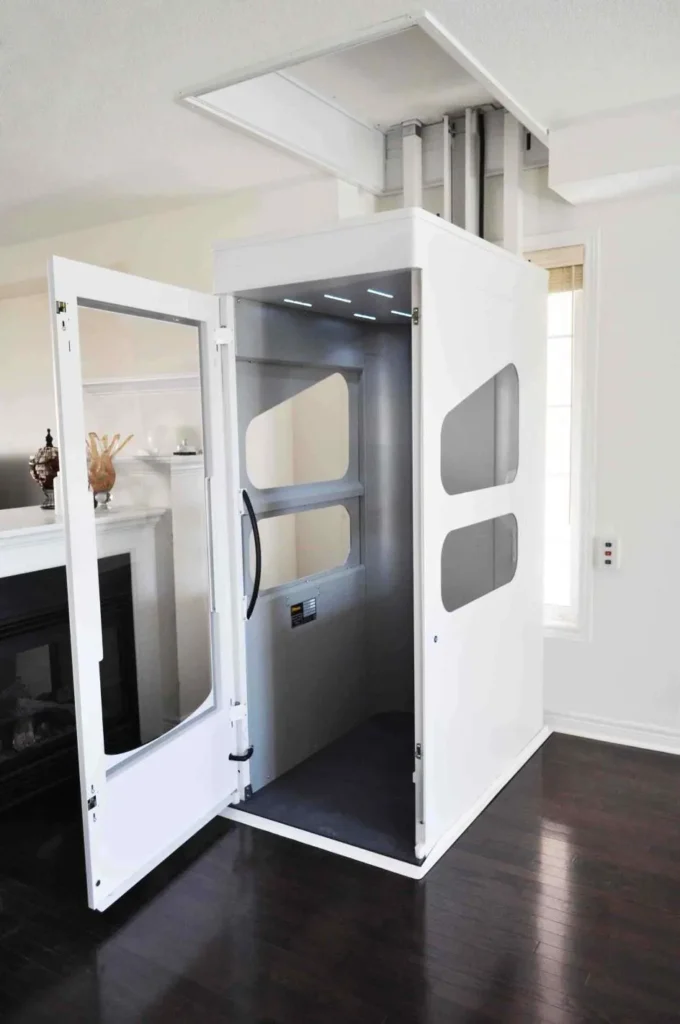

Enclosed Car Design
One of the VE’s most important traits is that it is designed to offer independence in your home. The internal controls are designed to be easy to use, and if they are not suitable, other control options are available. Almost anyone can use a VE totally unaided, and because of its enclosed design, carers can accompany the user in the lift if required.
Features At A Glance
- Allows a parent to travel with a child
- Free standing; no wall required
- Speedy installation (1-2 days)
- Can transport a wheelchair user and carer
- Functionally designed
- Door interlocking safety mechanism
- Power Door
Options
- Travel Up To 3m or 3.5m
- Add an interior seat
- Customisable internal colour options
- Upgradable interior lighting
Designed For Independence
One of the VE’s most important traits is that it is designed to offer independence in your home. The internal controls are designed to be easy to use, and if they are not suitable, other control options are available. Almost anyone can use a VE totally unaided, and because of its enclosed design, carers can accompany the user in the lift if required.
Unobtrusive
Easy to install, easy to use, easy to maintain! This makes it perfectly suited to the home, as it can be installed and operated with minimal impact to normal everyday lifts.

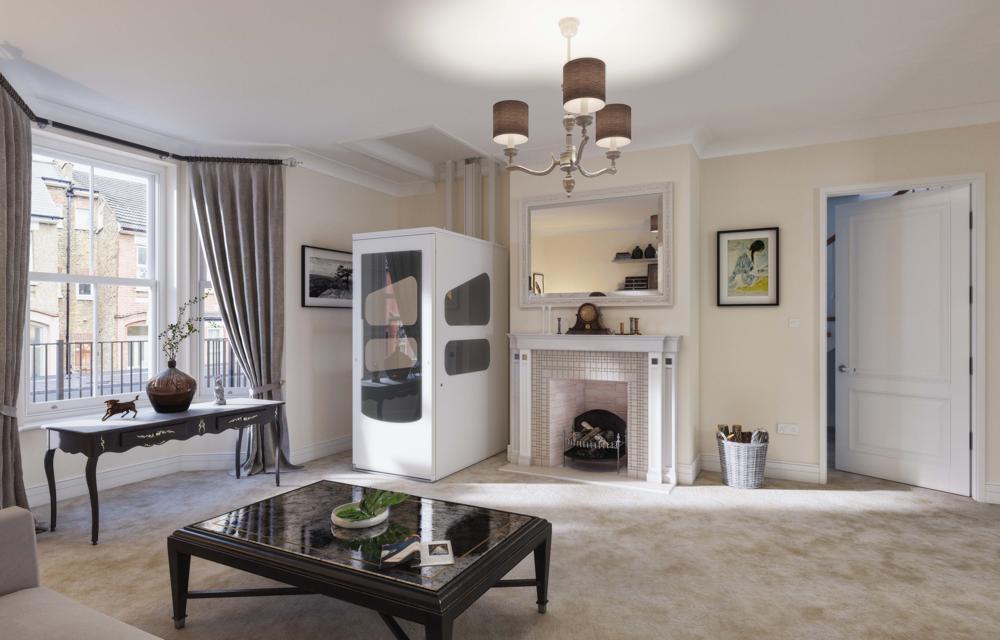

With a sensitive and subtle design, it can fit in perfectly to any home.
| Technical Specifications | VE15/VE25 | VE31/VE51 | VE36/VE56 | VE38/VE58 |
| Small Enclosed Lift | Yes | – | – | – |
| Standard Enclosed Lift | – | Yes | – | – |
| Large Enclosed Lift | – | – | Yes | – |
| Extra Large Enclosed Lift | – | – | – | Yes |
| 3m Maximum Travel | VE15 | VE31 | VE36 | VE38 |
| 3.5m Maximum Travel | VE25 | VE51 | VE56 | VE58 |
| Internal Cabin Width | 775mm | 725mm | 775mm | 885mm |
| Internal Cabin Length – Manual Door* | 575mm | 1145mm | 1195mm | 1365mm |
| External Cabin Length With Door Open To Wall | 1665mm | 2190mm | 2290mm | 2570mm |
| External Width Including Floating Platform | 920mm | 870mm | 920mm | 1030mm |
| External Length Including Floating Platform | 905mm | 1475mm | 1525mm | 1695mm |
| External Cabin Length To Wall | 840mm | 1410mm | 1460mm | 1630mm |
| Internal Cabin Height | 2000mm | 2000mm | 2000mm | 2000mm |
| External Cabin Height 3m Models | 2080mm | 2080mm | 2080mm | 2080mm |
| External Cabin Height 3.5m Models | 2220mm | 2220mm | 2220mm | 2220mm |
| Minimum First Floor Ceiling Height 3m Models | 2180mm | 2180mm | 2180mm | 2180mm |
| Minimum First Floor Ceiling Height 3.5m Models | 2315mmm | 2315mm | 2315mm | 2315mm |
