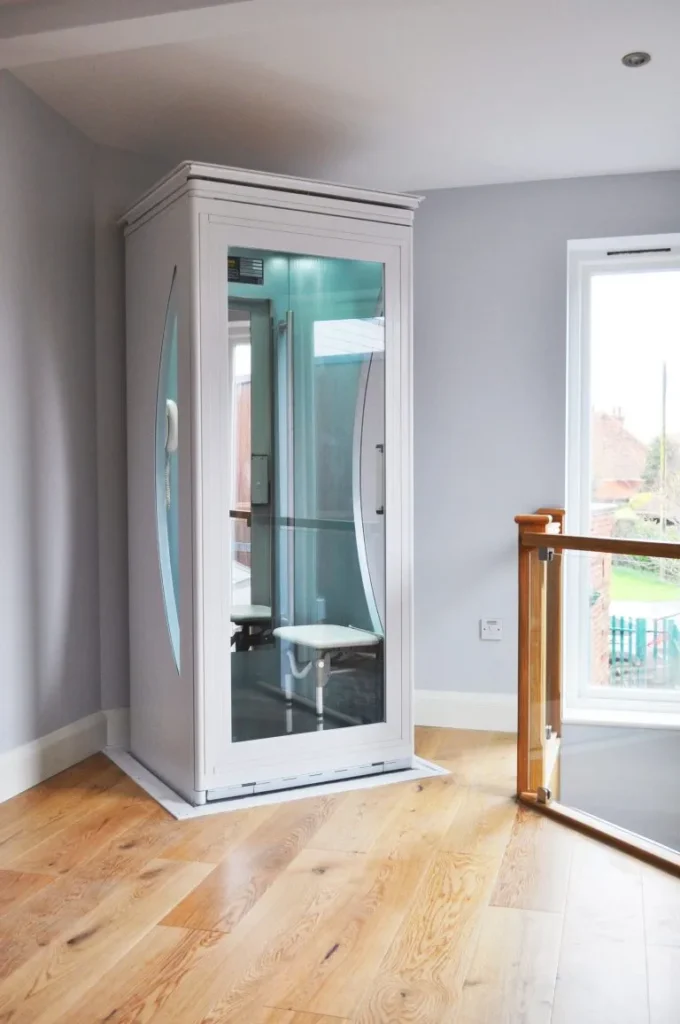

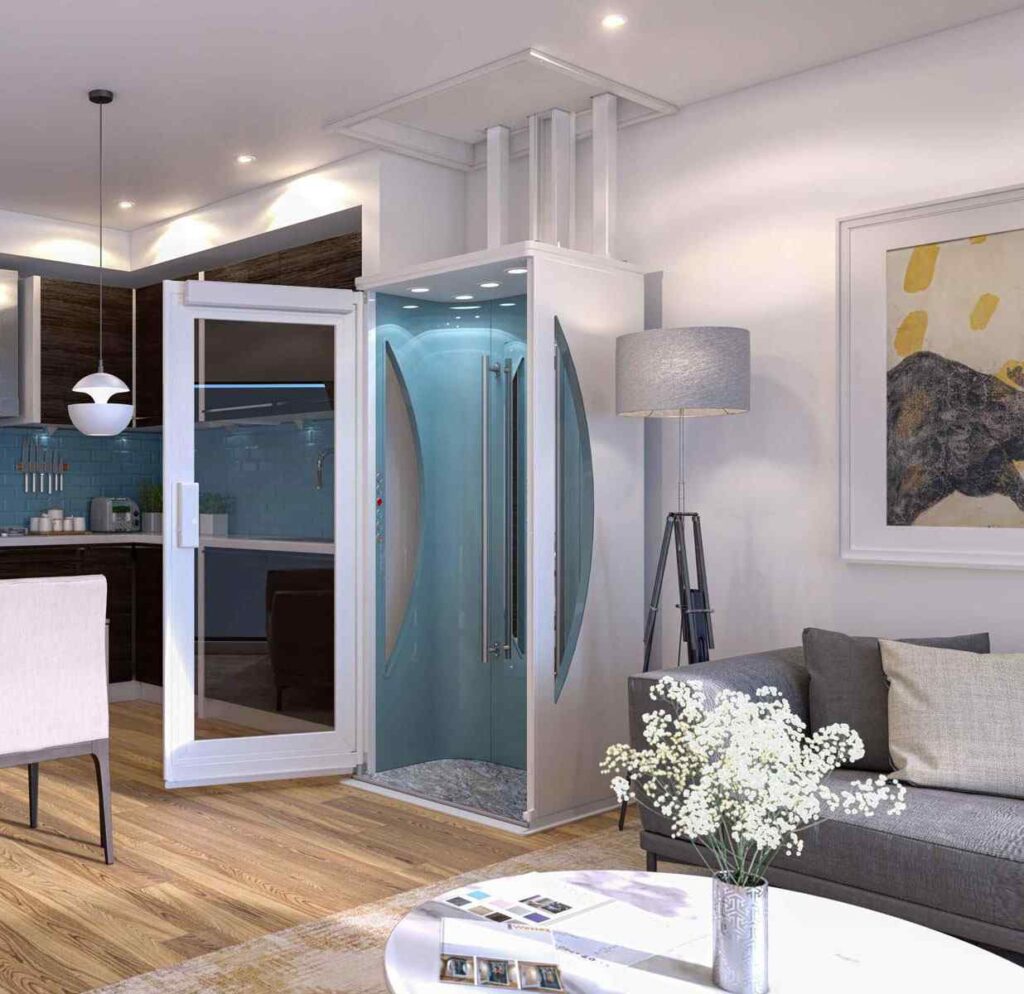

The Elesse is synonymous with quality. The Elesse is designed to be as comfortable, safe, and easy to use as possible.

A Passenger Lift Alternative
The Elesse benefits from its smaller footprint. It’s easier to install, easier to remove, easier to maintain, and less costly than a full sized passenger lift, whilst maintaining a lot of the benefits of one.
Through-Floor Lift Excellence
Designed with premium materials, longevity in mind, and with it being highly customisable, this lift can make a nice addition for anyone looking to future-proof their home.
Features At A Glance
- Space conscious design, 0.9 sq. metre footprint!
- Capacity: One or two standing or perched passengers, up to 250kg weight limit
- Minimal building work required
- Free standing tracks eliminate the need for a load-bearing wall, wider choice of lift locations
- Wireless controls as standard, and high spec internal push button controls
- Power operated door as standard, and door interlocking safety mechanism
Options
- Door can be handed right or left to suit the user and the room
- Leather perch seat is available
- Interior and Exterior of the lift totally customisable with custom colours and materials

Technical Specifications | Elesse 15 | Elesse 25 | Elesse 36 | Elesse 56 |
Safe Working Load Kg | 250 | 250 | 250 | 250 |
Usable Platform Dimensions mm | 775 x 575 | 775 x 575 | 775 x 1195 | 775 x 1195 |
Lift Footprint Dimensions mm | 920 x 905 | 920 x 905 | 920 x 1525 | 920 x 1525 |
Lift Length With Door Open mm | 1665 | 1665 | 2290 | 2290 |
Minimum Upper Floor Ceiling Height mm | 2180 | 2315 | 2180 | 2315 |
Mid-Floor Dimensions mm | 165 – 385 | 165 – 385 | 165 – 385 | 165 – 385 |
Lift Speed mm/sec | 60 | 60 | 60 | 60 |
Maximum Travel mm | 3000 | 3500 | 3000 | 3500 |
