Access BDD Flow X Curved Stairlift

Designed for seamless movement, the Flow X provides outstanding levels of comfort, confidence and craftsmanship.

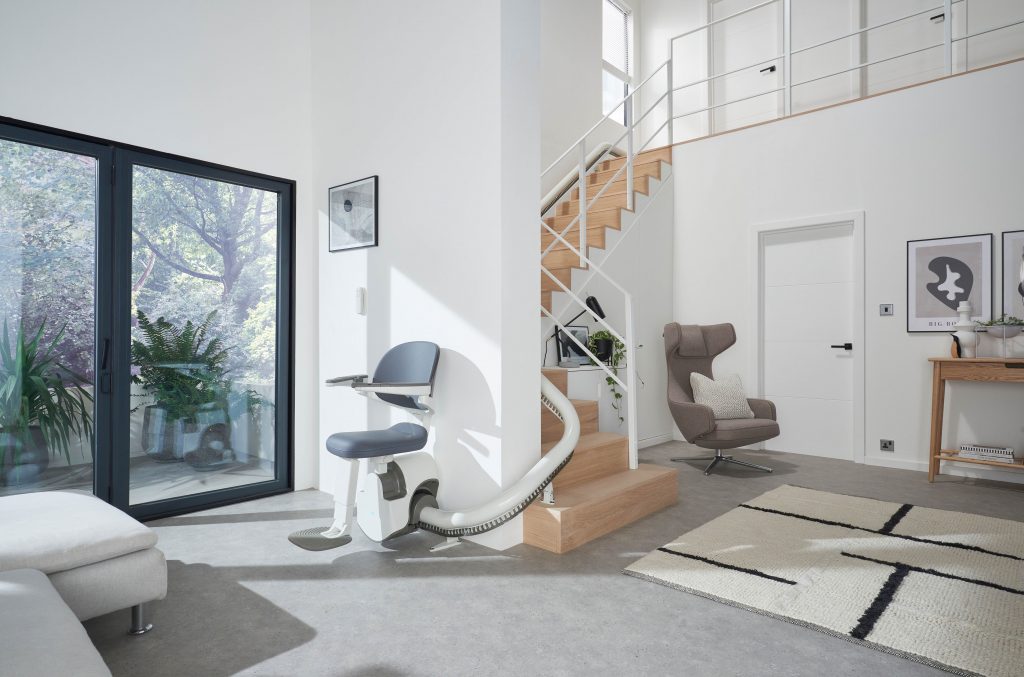

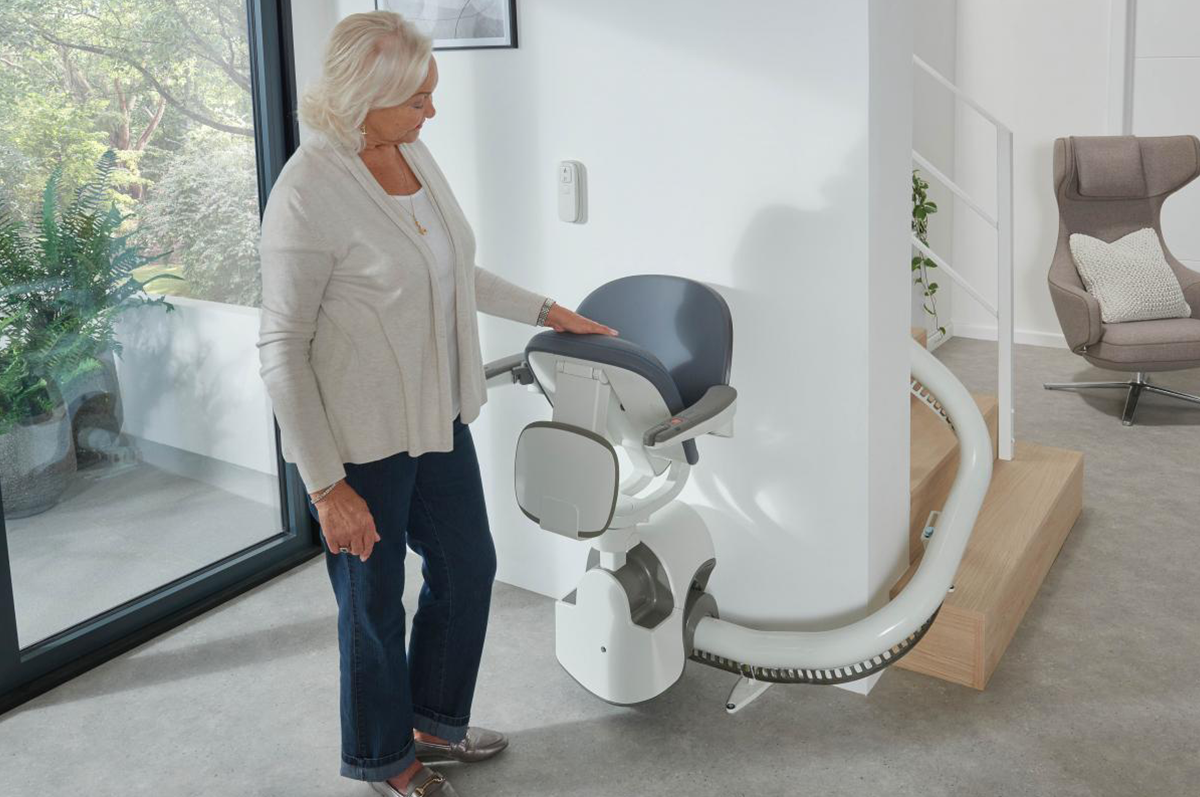

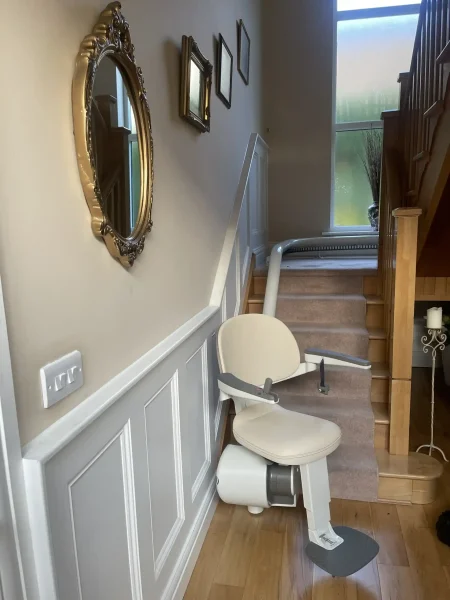

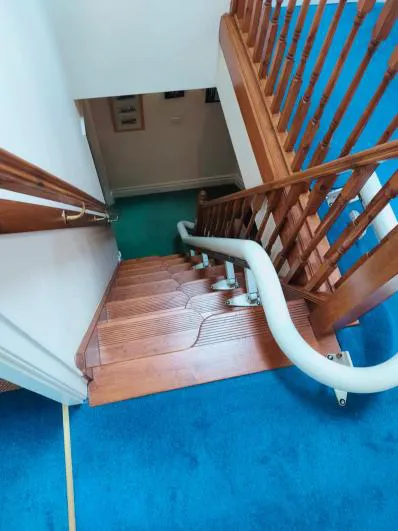

Flow X is designed to blend into your home effortlessly. It is fitted onto your staircase and not your wall, allowing it to be installed quickly and efficiently, with minimum disruption to your home. Designed with a five-degree seat recline, Flow X promotes a natural, comfortable and healthy posture.

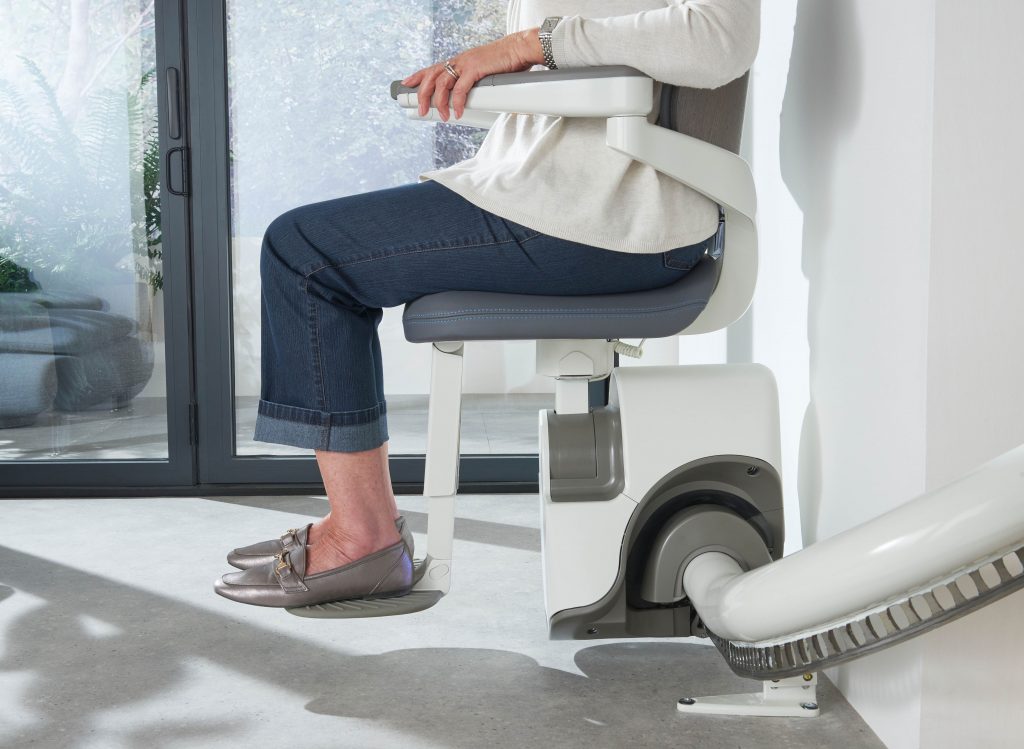

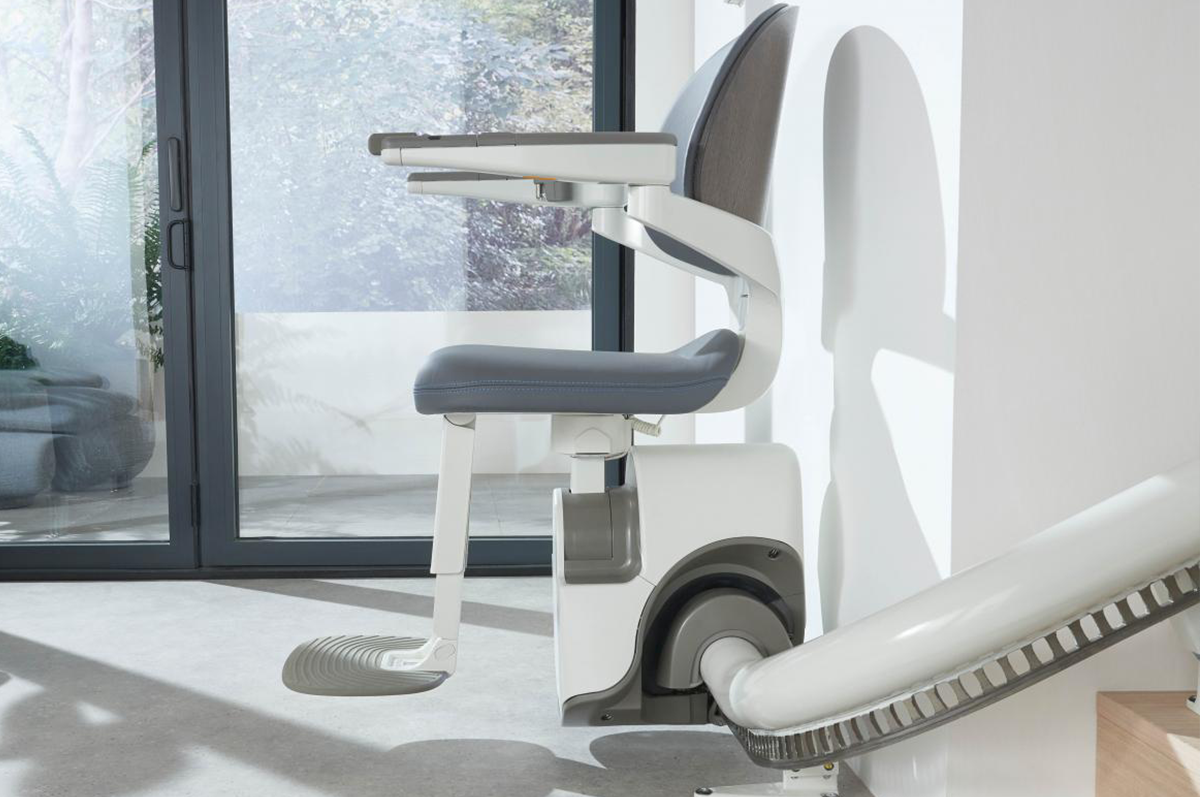

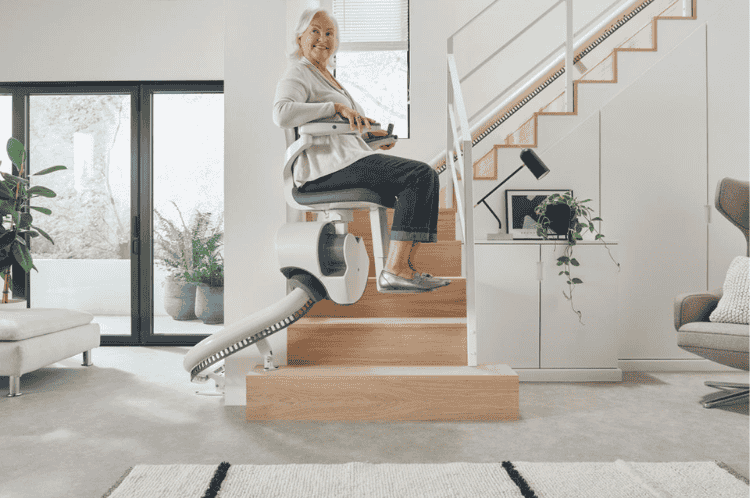

Side view of Access BDD Flow X Stairlift with elderly user

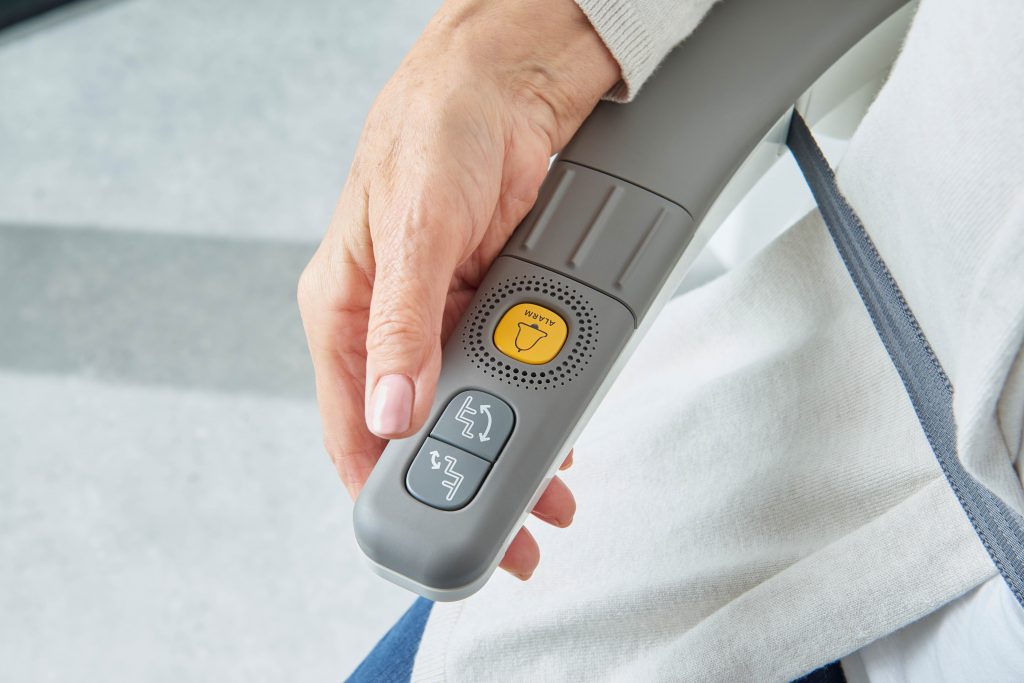

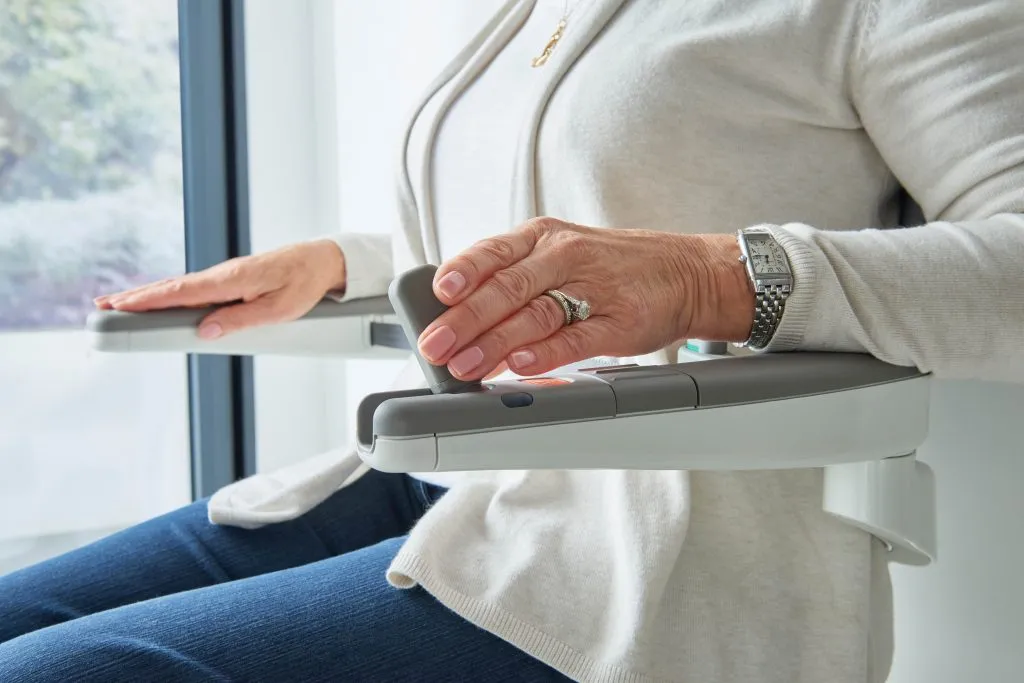

Closeup of Access BDD Flow X Curved Stairlift control/joystick

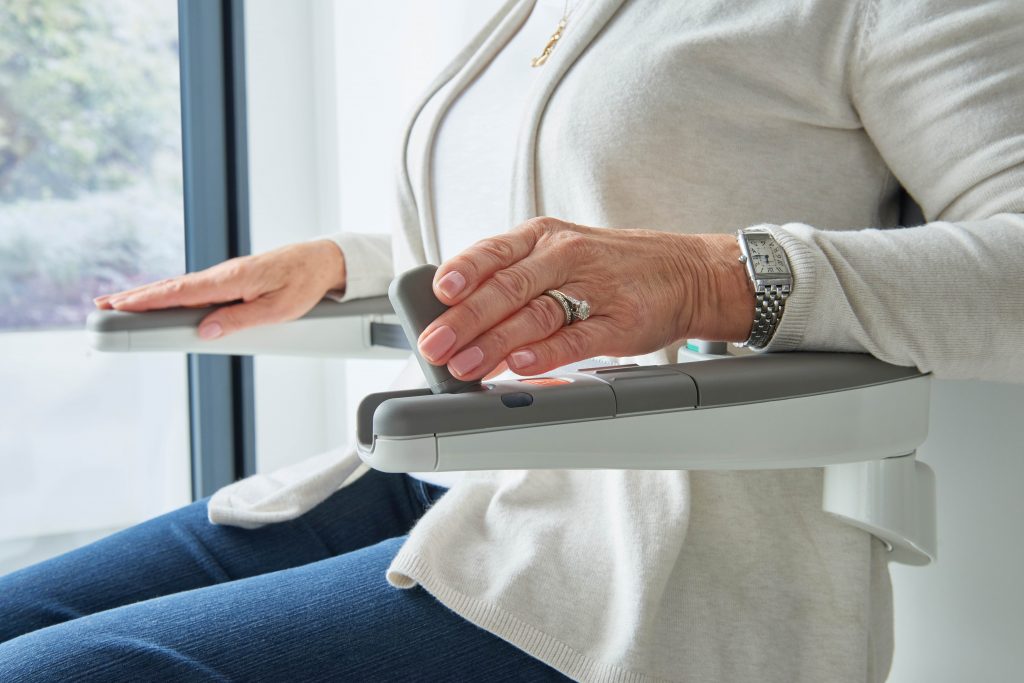

Closeup of Access BDD Flow X Curved Stairlift control

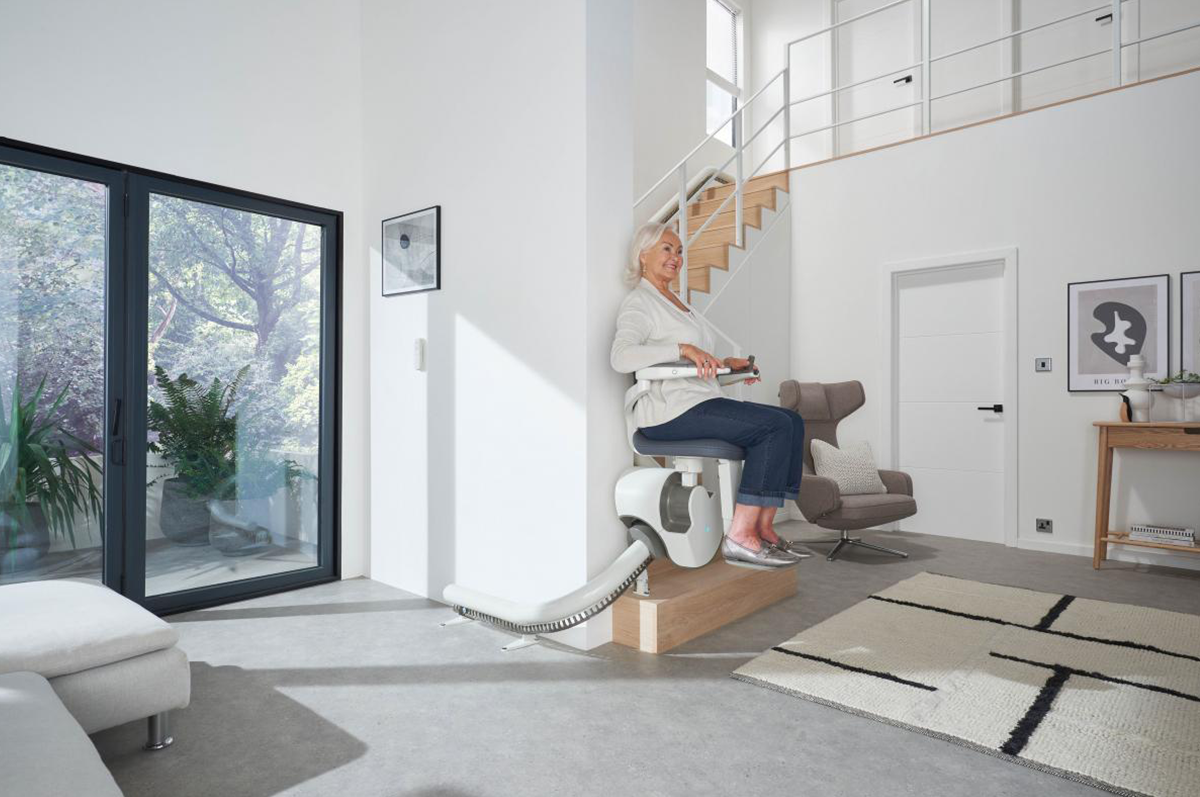

Part of the furniture

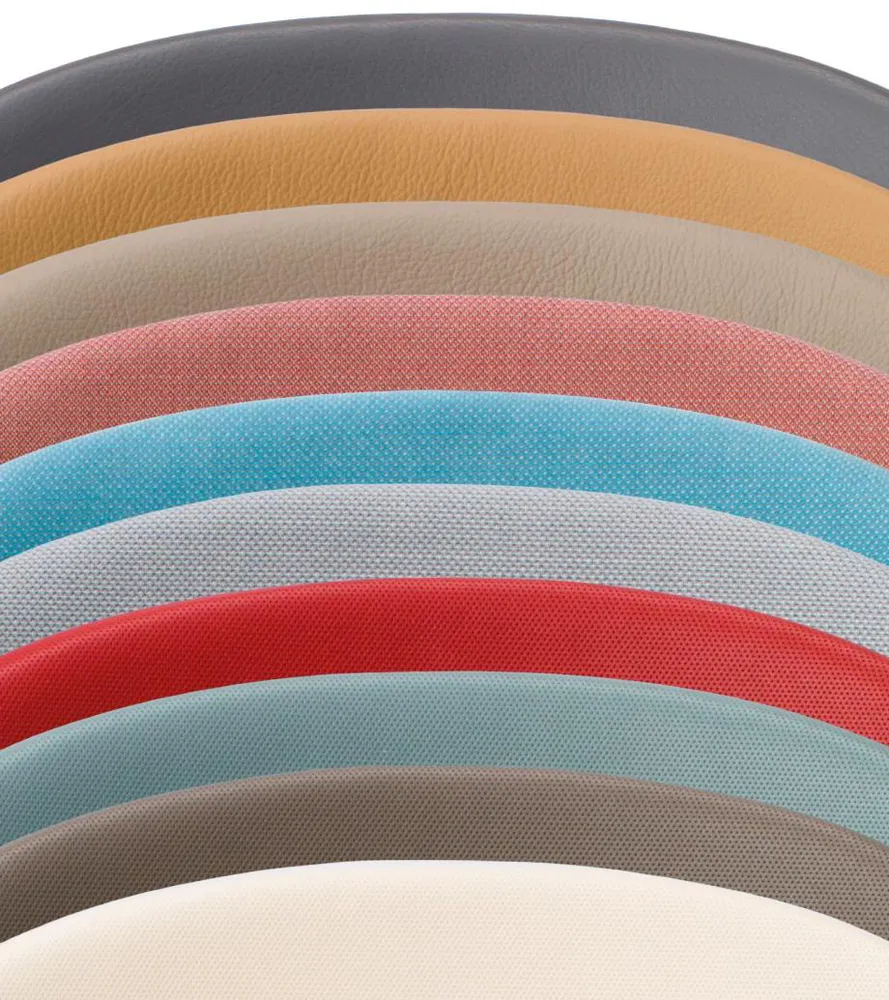

High-quality fabrics and finishes allow Flow X to blend into your home seamlessly.

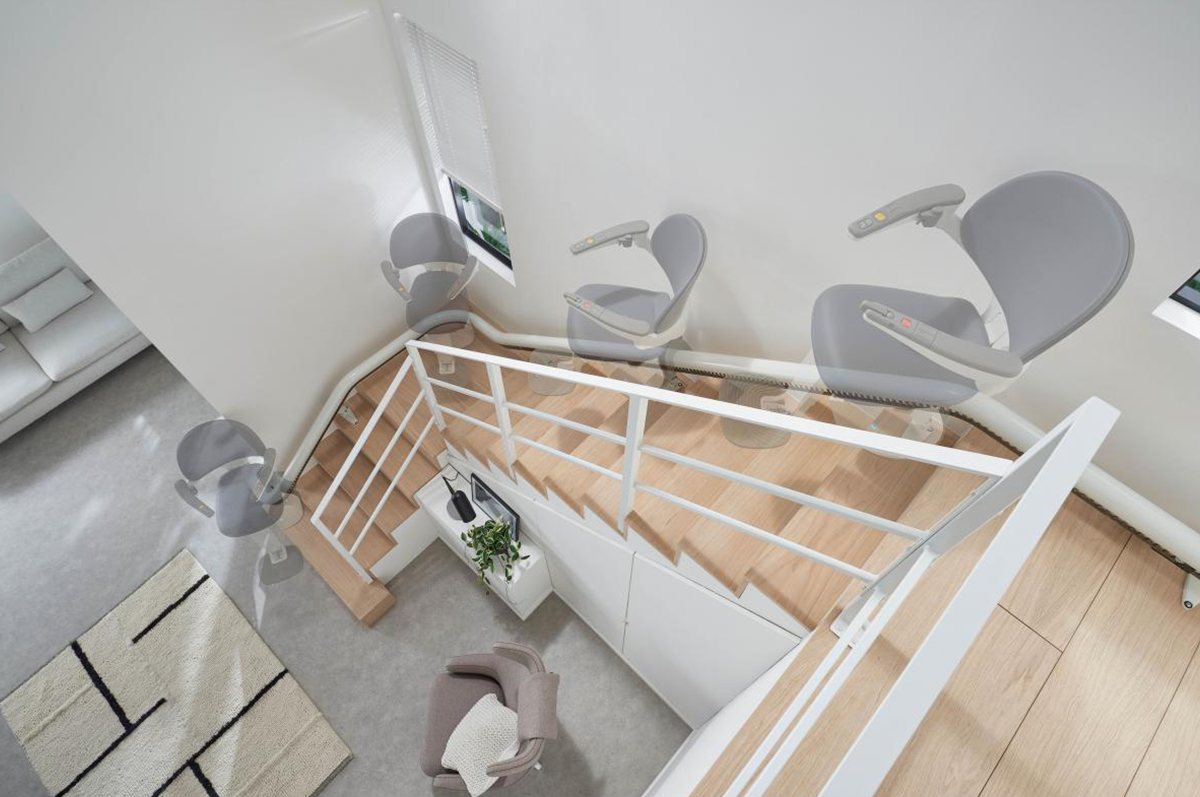

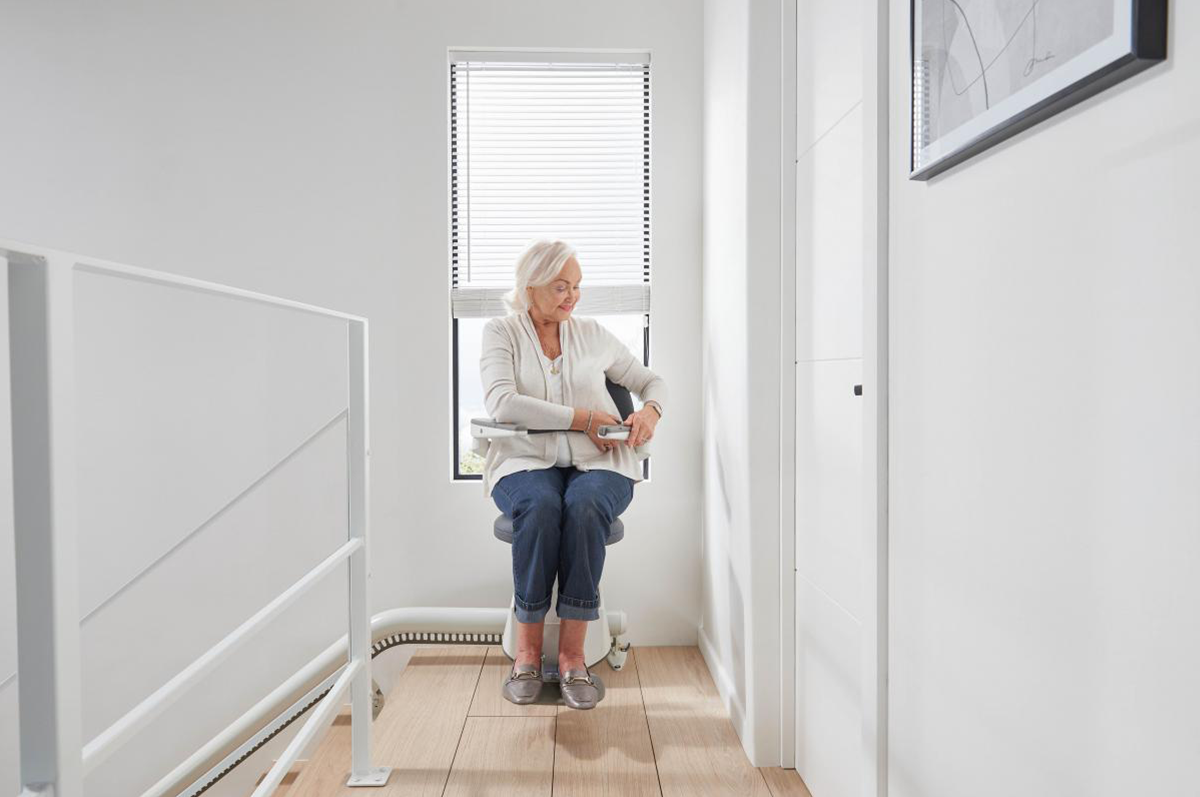

Room to breathe

Flow X offers comfort for all while still being Thyssen’s most space-conscious stairlift to date.

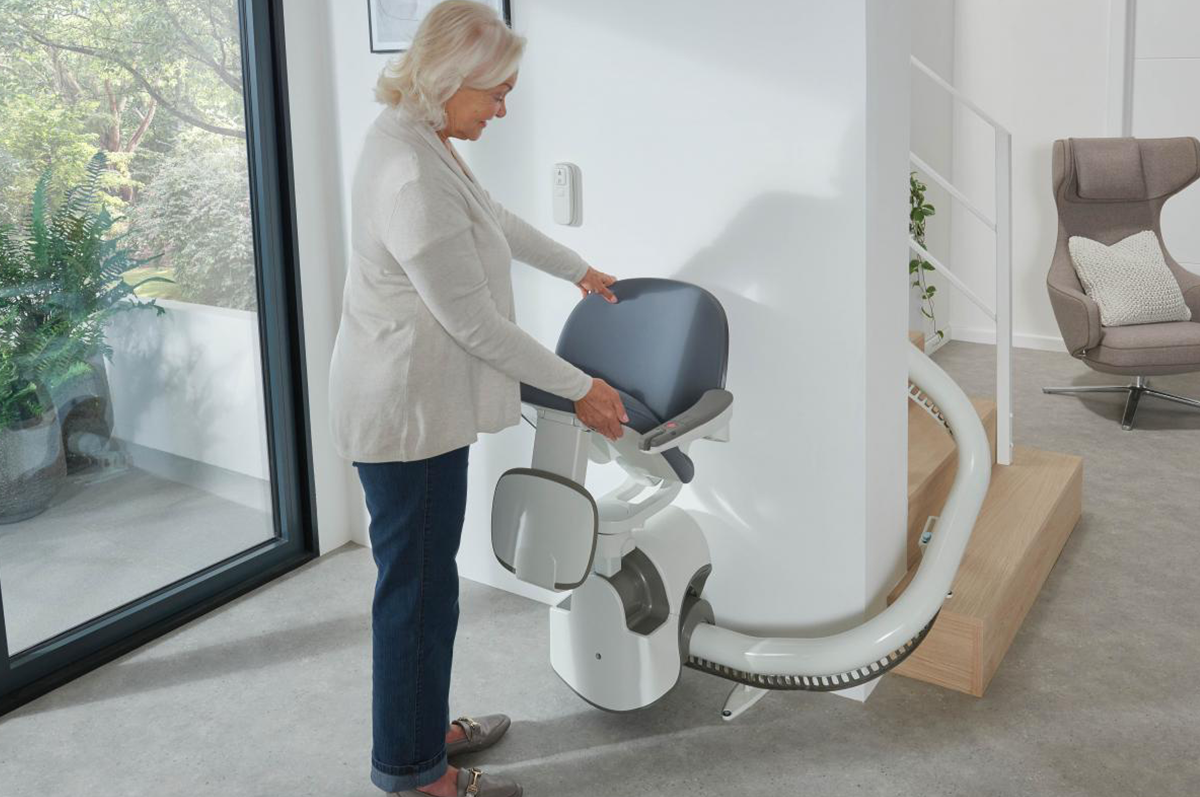

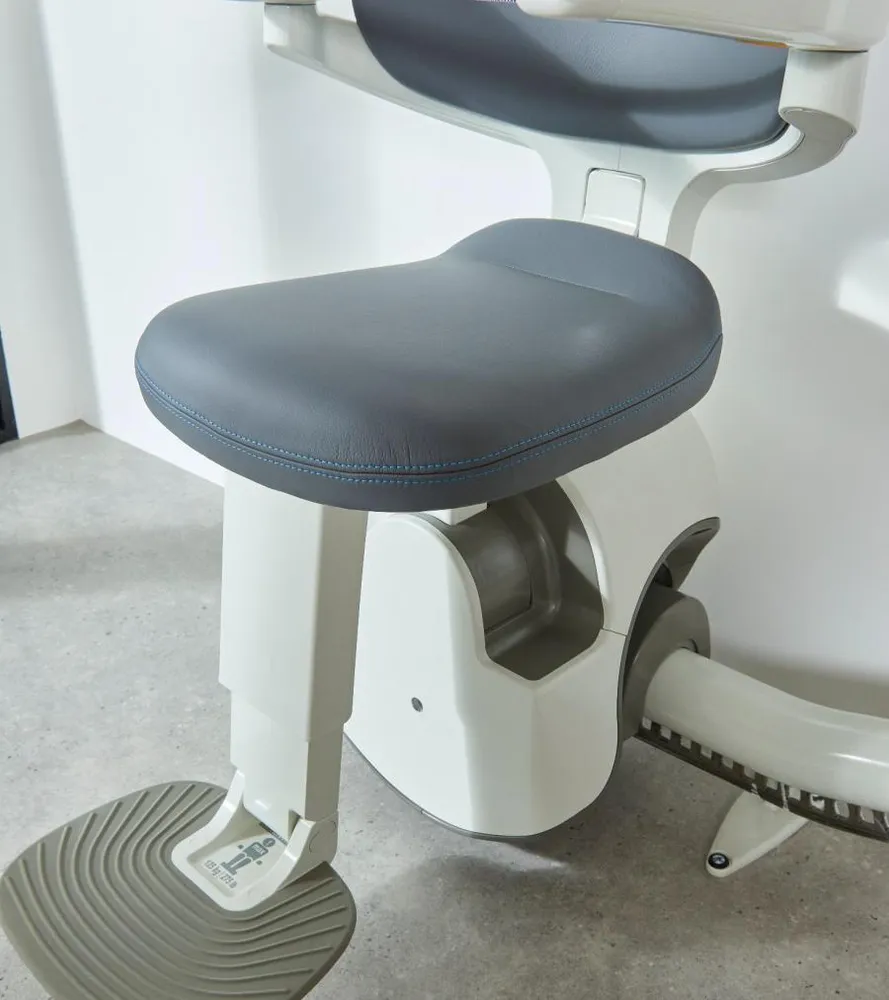

Find your feet

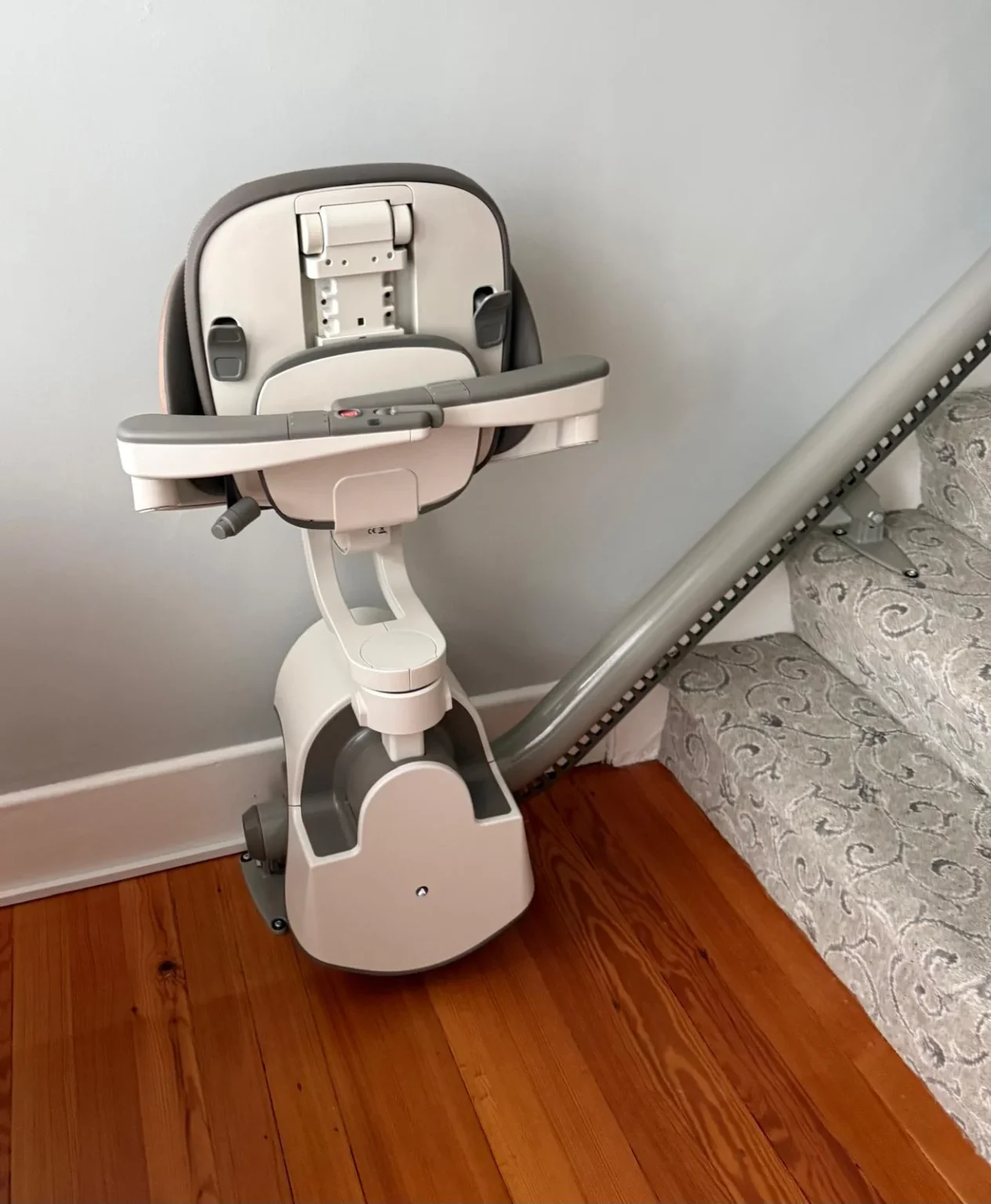

With an adjustable footrest and unique, complete automatic folding, using a stairlift has never been easier.

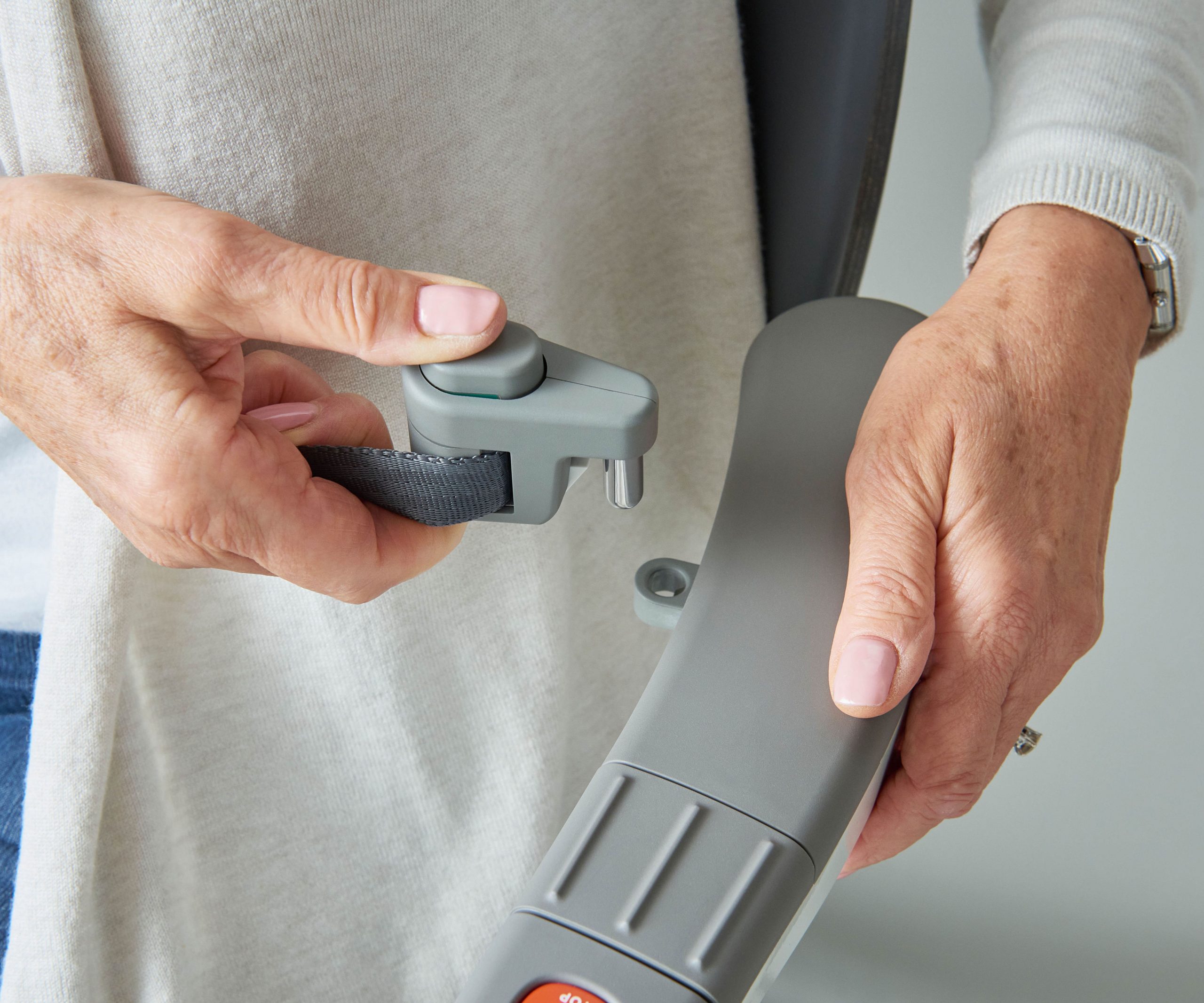

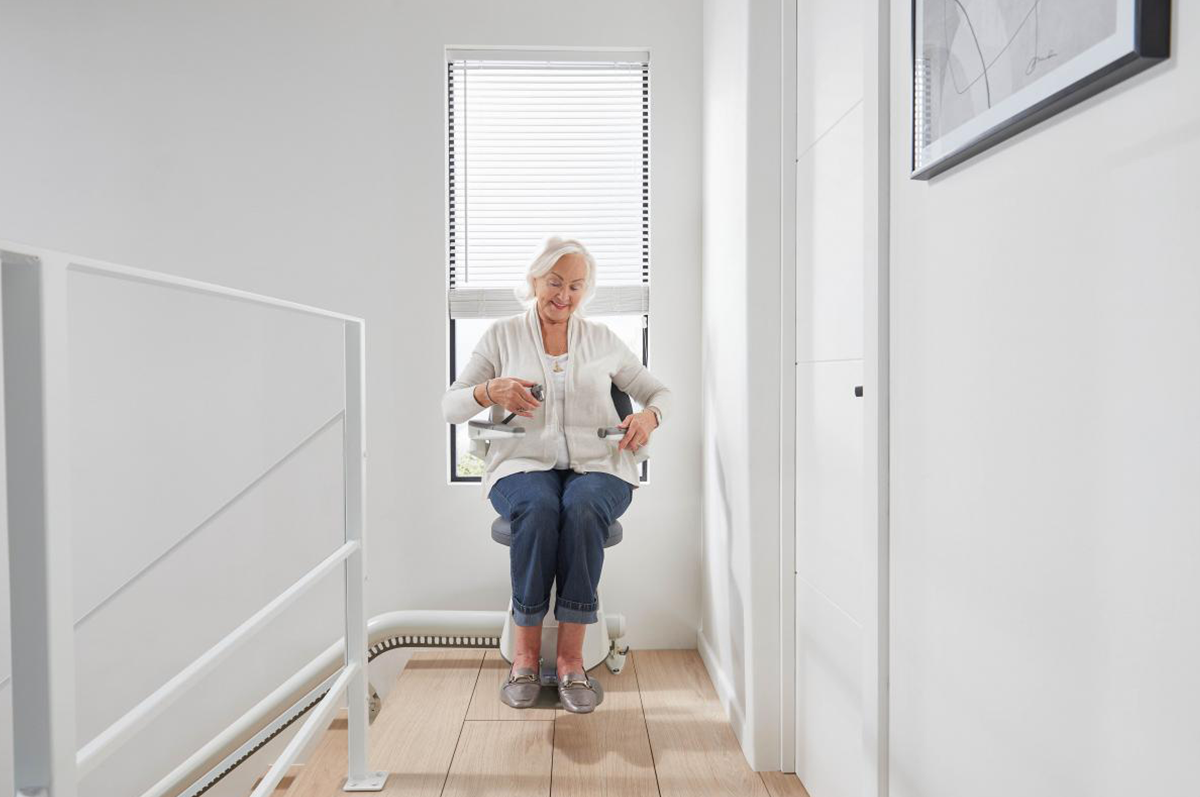

Keeping you safe

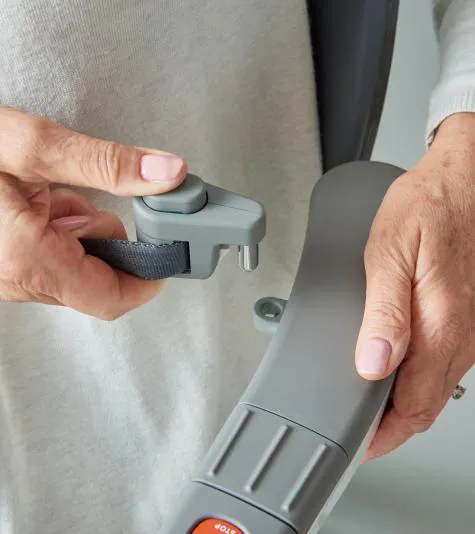

The ergonomically designed seatbelt enables effortless one-handed operation.

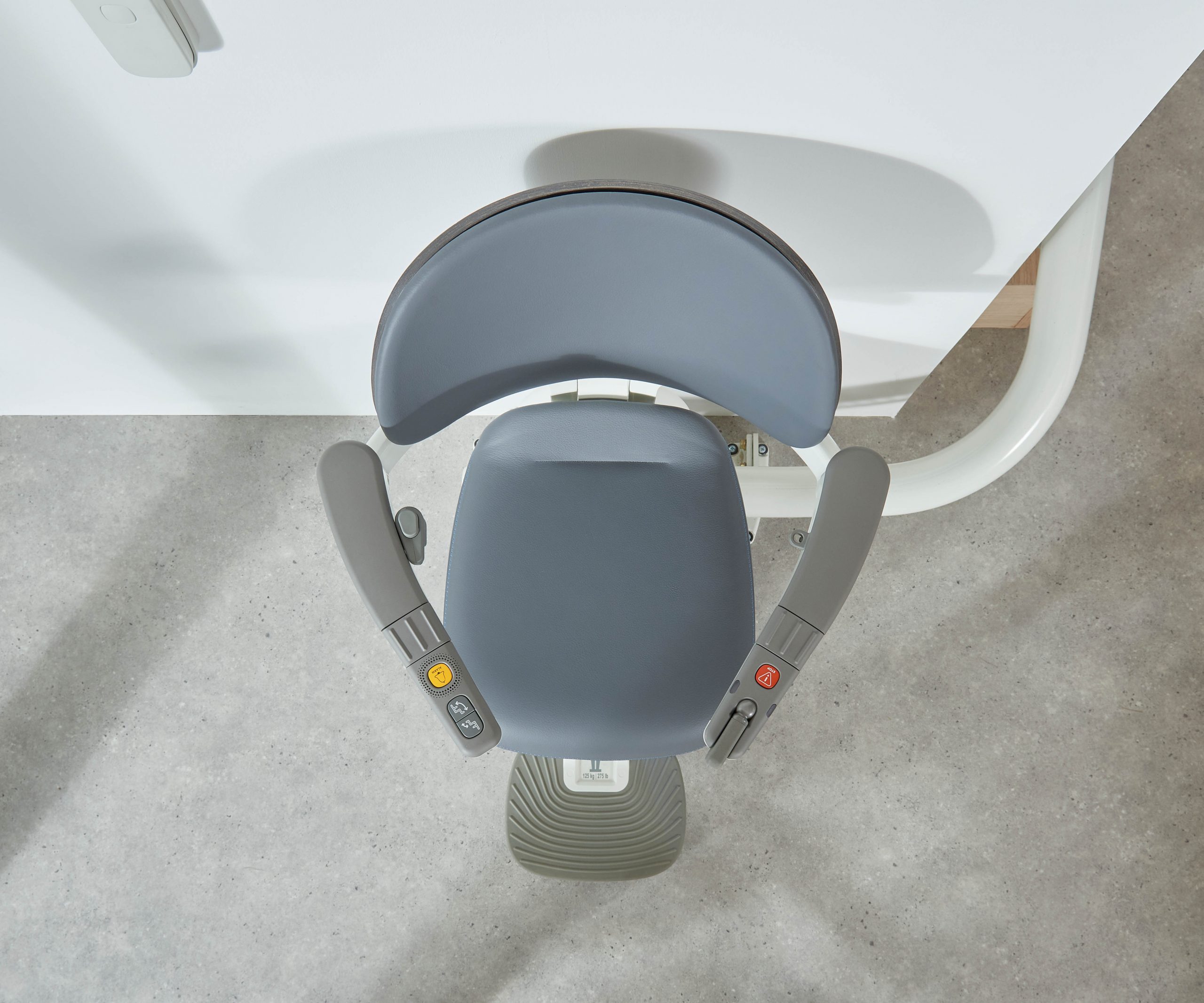

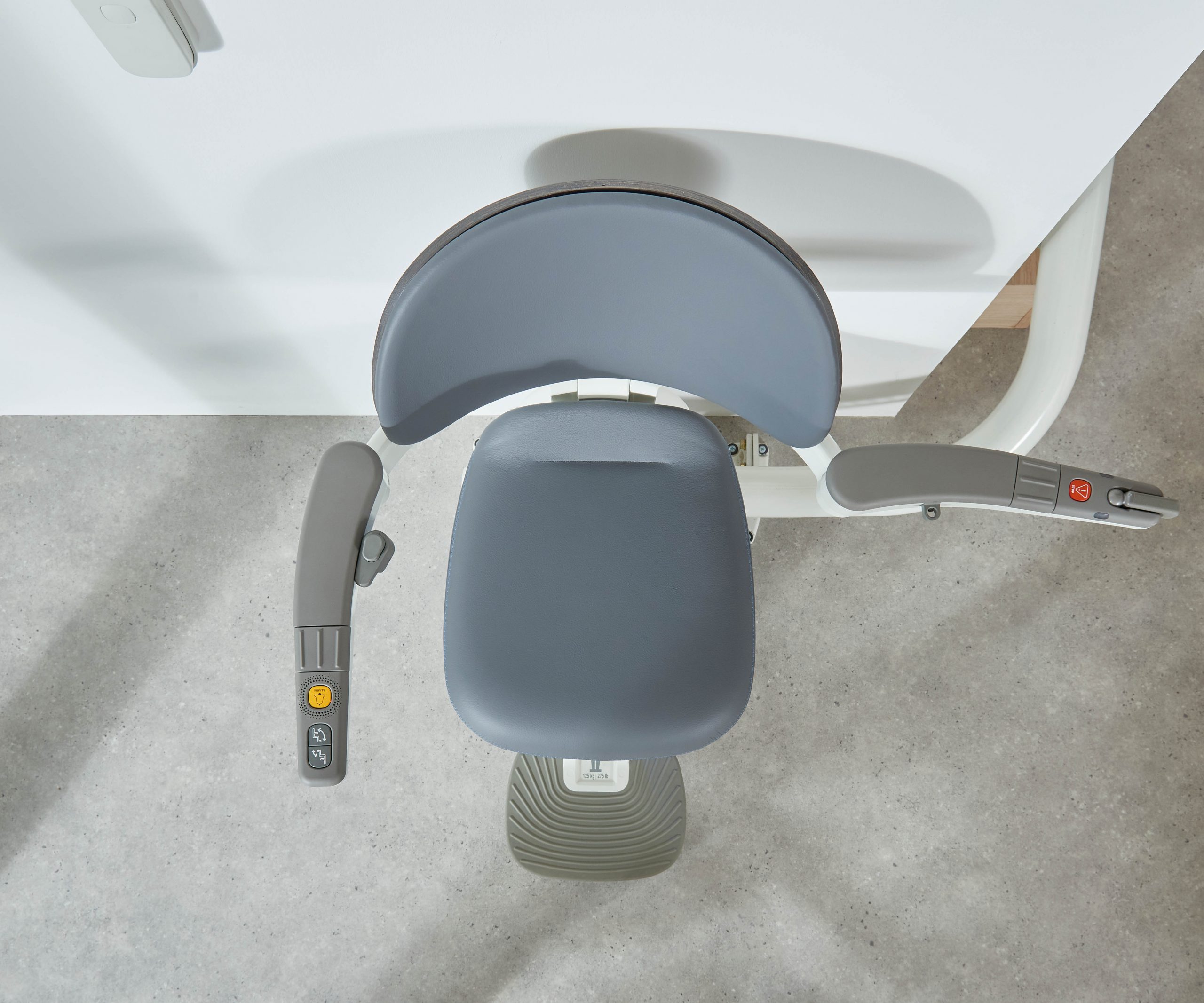

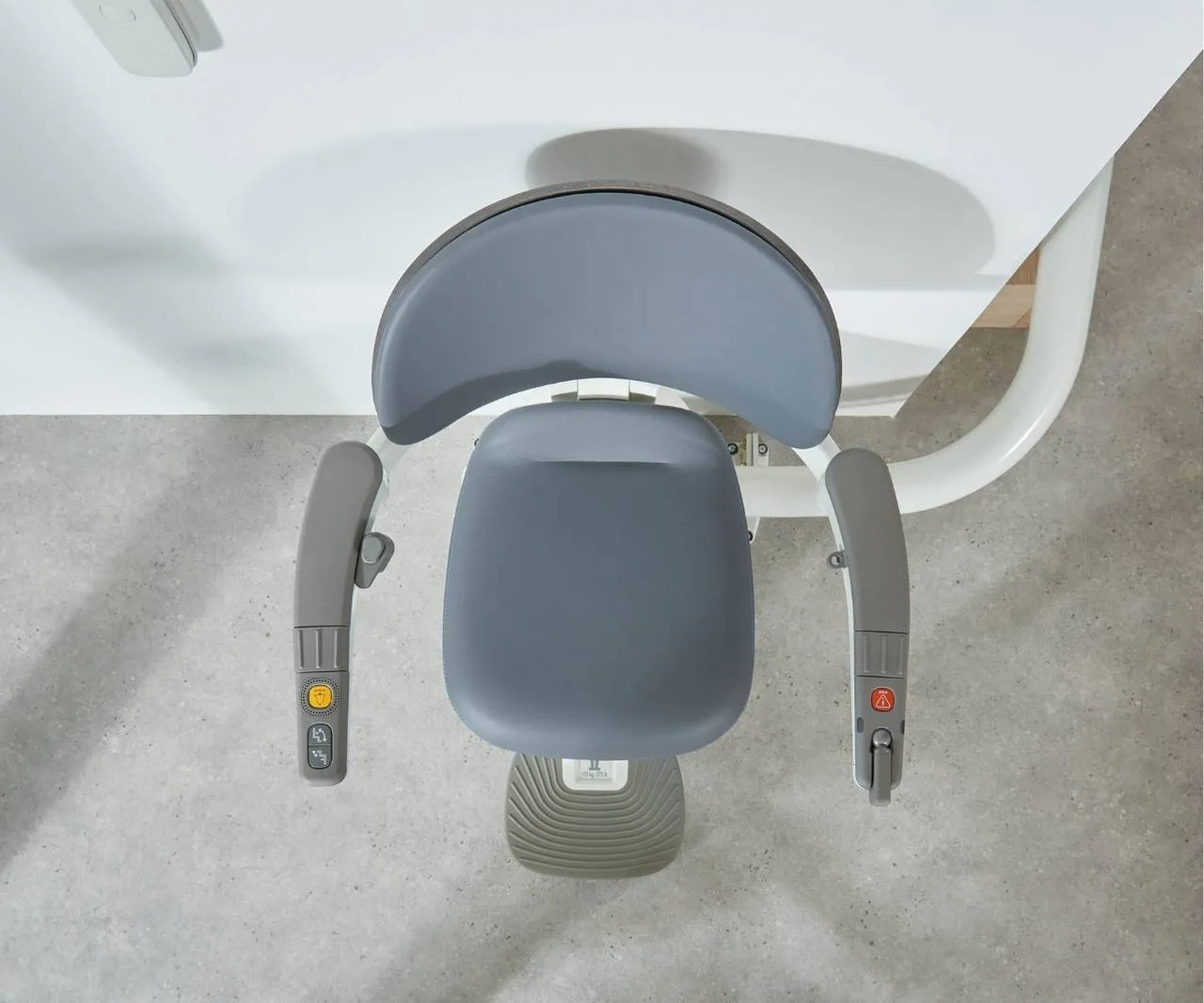

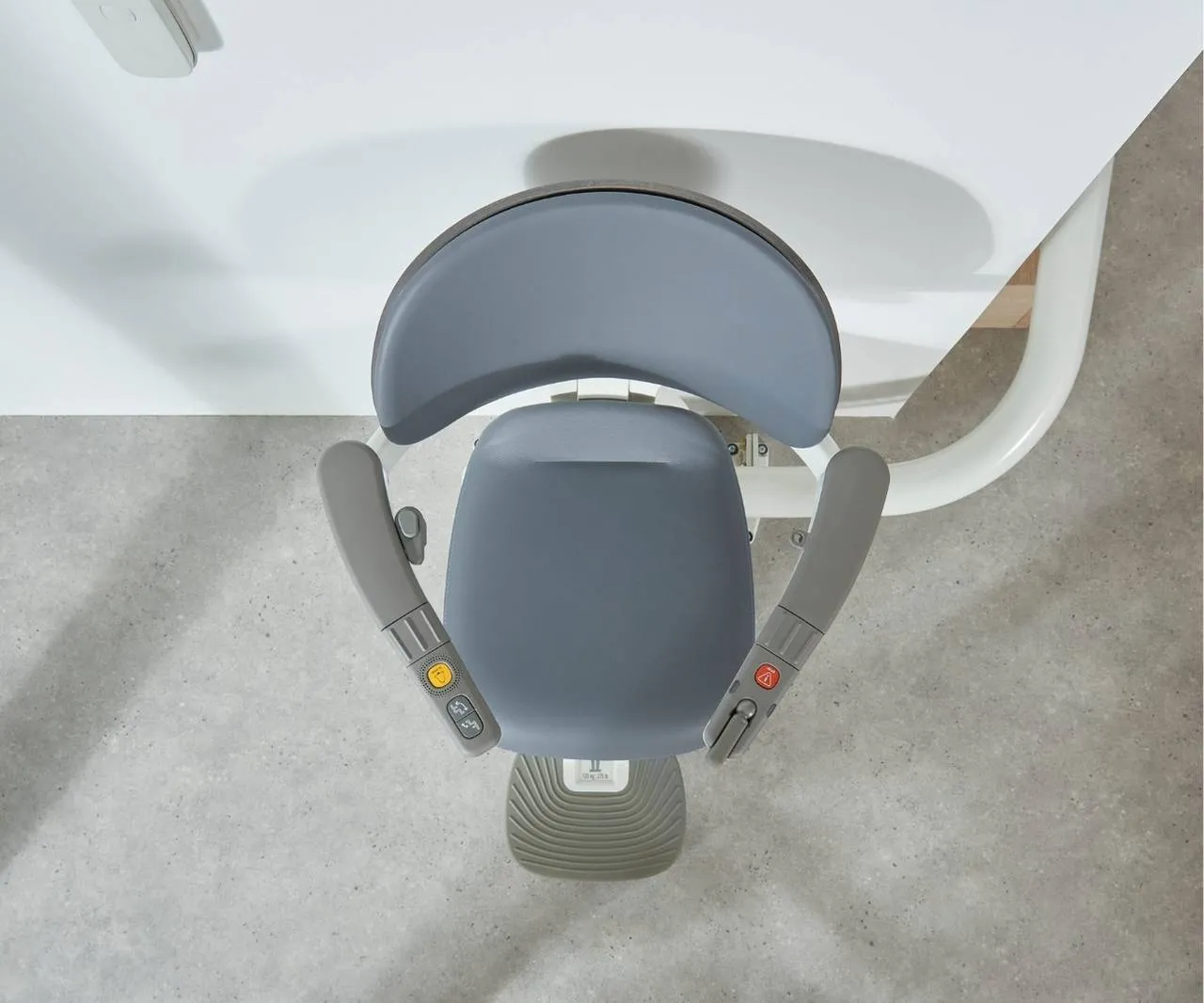

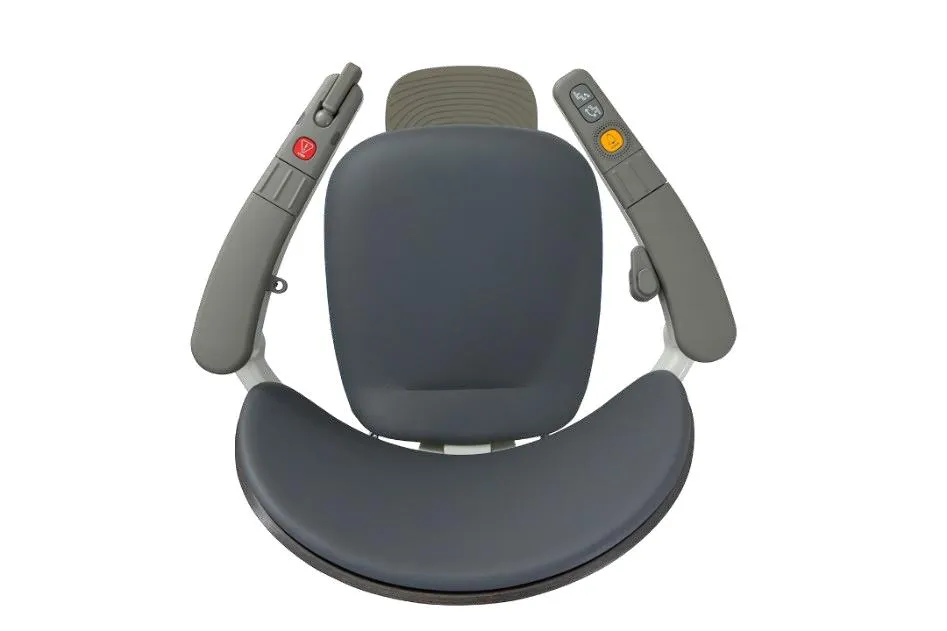

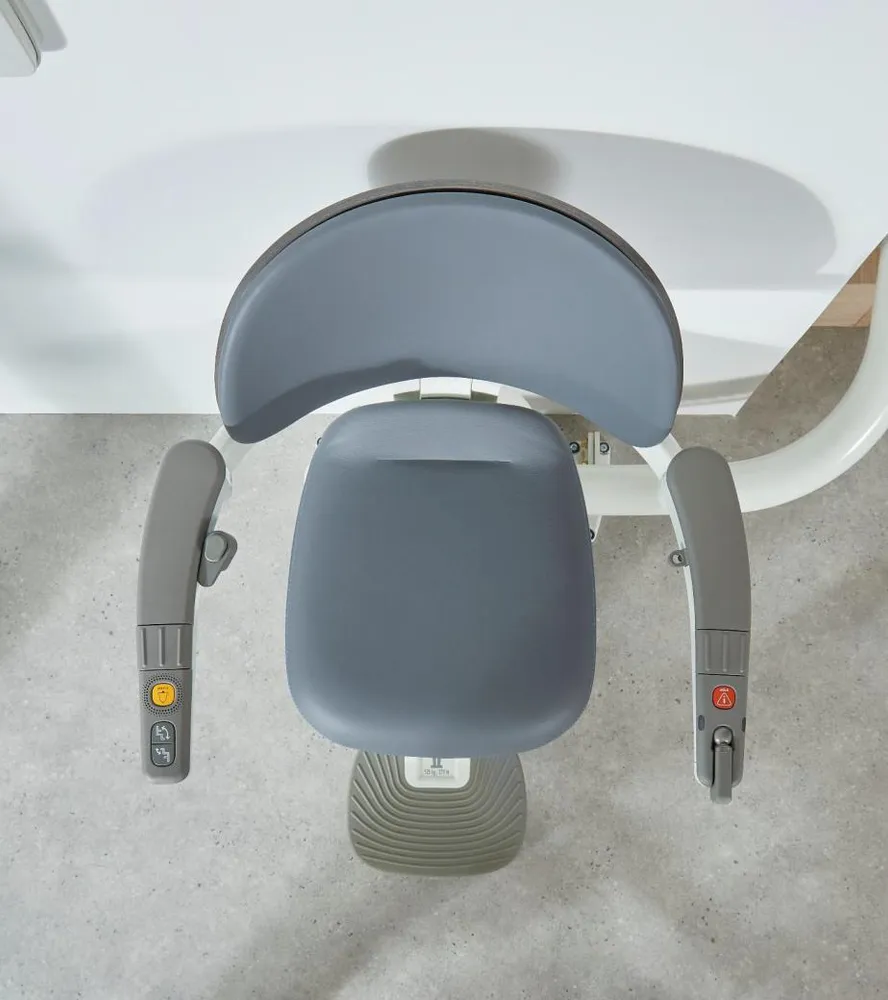

Armrest

Dual status lights on the armrest remain visible whatever your direction of travel, keeping you in control.

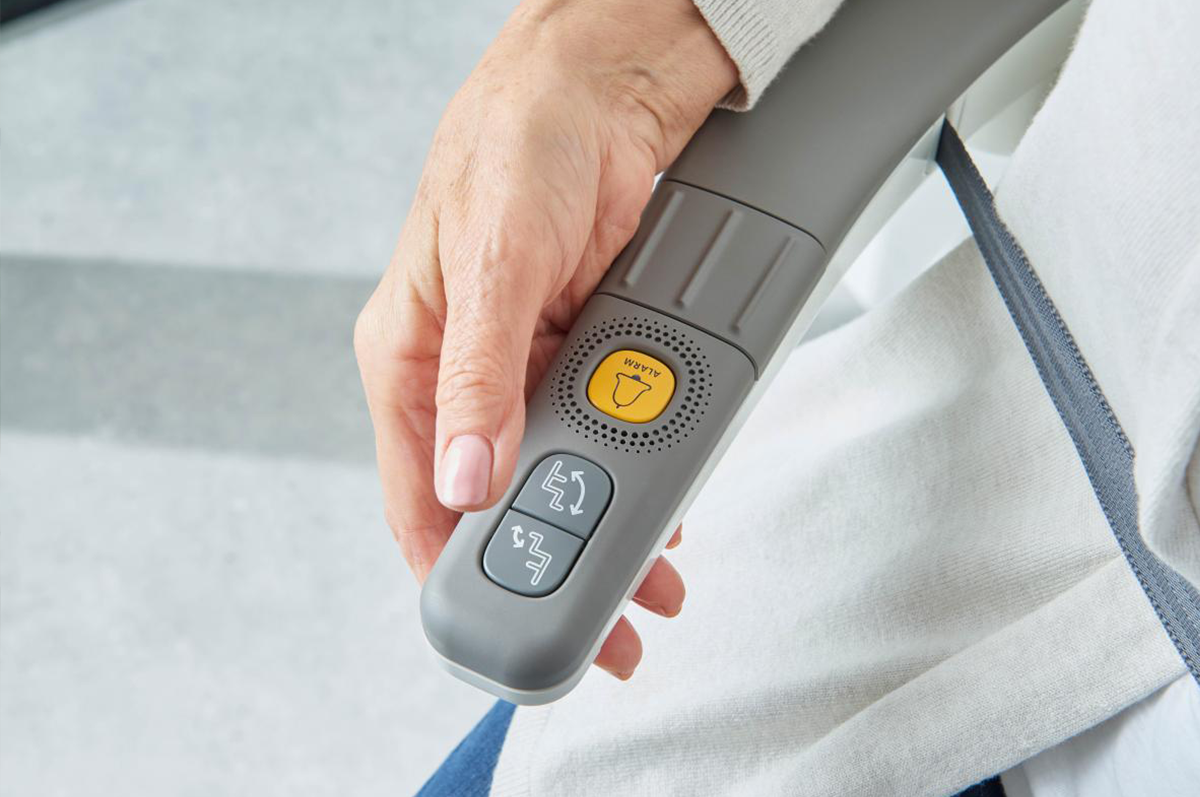

Peace of mind

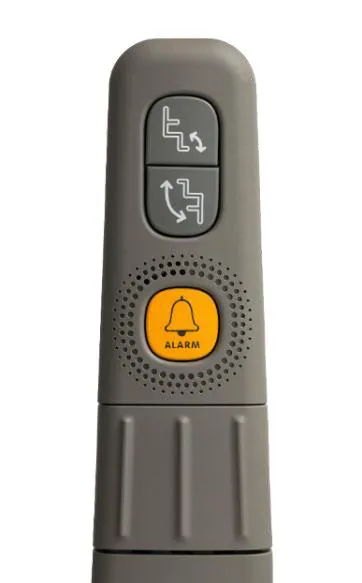

An embedded call device keeps you connected at all times with the touch of a button.

Control

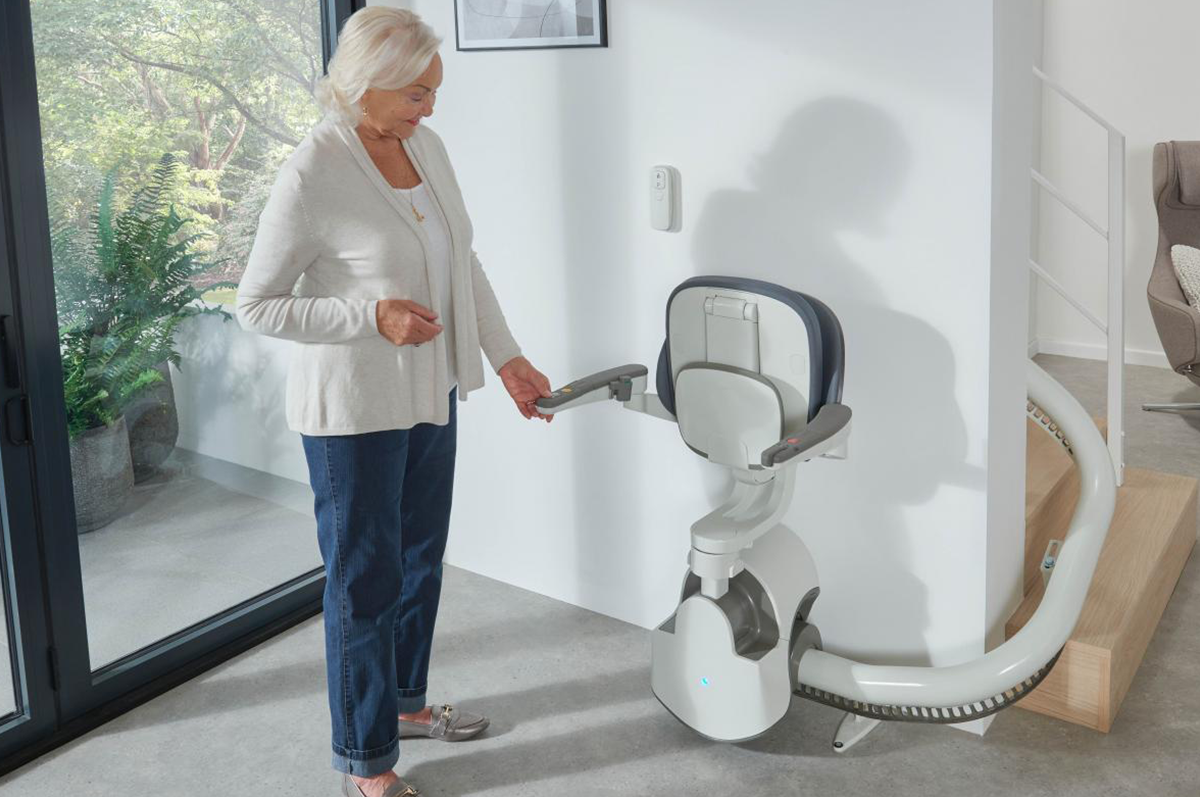

An intuitive remote control and clear status indicator mean that calling and parking have never been easier.

Technical Specifications
System Details
Speed	Max 0.15 m/s
Drive Type	Rack and pinion
Motor Wattage	350W
Weight Capacity	125kg(275lbs)
Automatic Stop	Yes

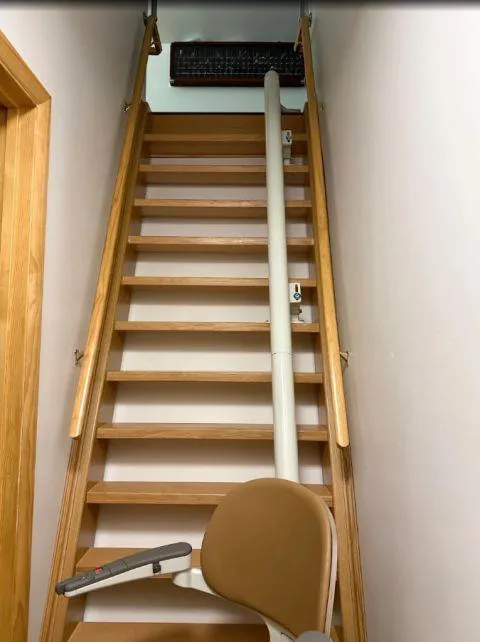

Stairlift Incline	Up to 72 Degrees
Operation	Armrest detection and foldable joystick control as standard
Batteries	2 x 12V batteries, total 24V

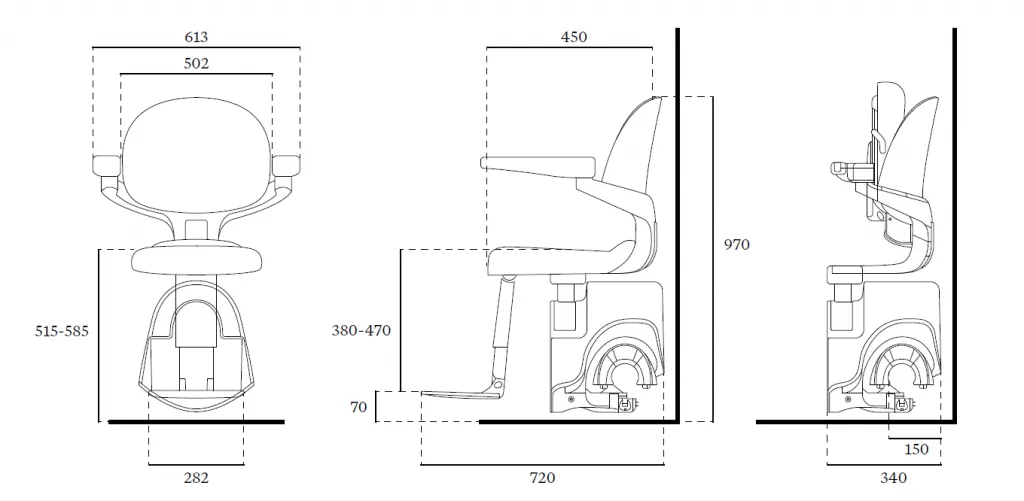

Chair Dimensions
Footrest	Available in two sizes. Adjustable in 5 positions. Chair back to end of footrest: 720mm (short 620mm)
Seat Height	Adjustable. 4 positions 515-585 mm from floor to top of the seat
Armrest	Width 613mm (straight position)
